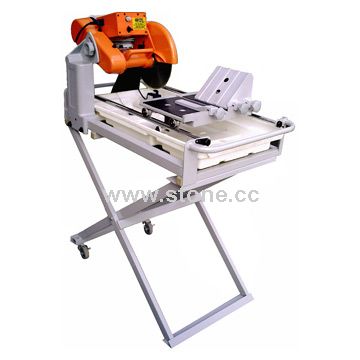

10 Professional Tile Saw

• Place of Origin:

   China

• Type:

  Quarrying and Earthmoving Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1240713

• Place of Origin:

  China
• Features:
  1) Ideal for professional wetting cutting of tiles and marbles
  2) Driven by 2-1/2 HP powerful induction dual capacitor motor
  3) Rugged heavy duty die cast cutting head, column, blade guard and belt guard
  4) Precision guide ways with bearing rollers
  5) Removable ABS water tray with inserted water pump
  6) Die cast rip guide and 45 degrees mitre gauge included
  7) Foldable stand included as standard

  Specifications:
  1) Voltage: 120V, 60Hz/1PH
  2) Power: 2-1/2HP
  3) Blade speed: 3,700rpm
  4) Blade diameter: 10" (254mm)
  5) Arbor size: 5/8" (15.9mm)
  6) Depth of cut: 3-3/4" (95mm)
  7) Length of cut (rip): 18" (460mm)
  8) Diagonal cut: 12" (300mm)
  9) Weight: saw body 93lbs (42kg); stand: 89lbs (24kg)
  10) Saw body dimensions: 1,020 x 610 x 450mm
  11) Stand dimensions: 1,170 x 550 x 130mm
